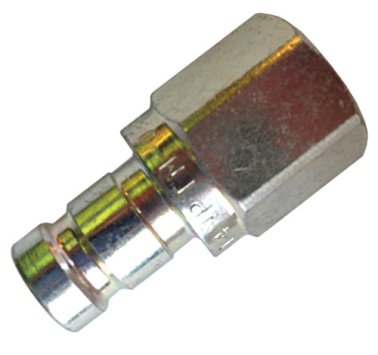

FASTER® Series DF: Diagnostic Hydraulic Nipple

Item #: DF04-14NPTM

Your Price: $19.30 / each ea
Listed Price: $19.30 / each ea
Series DF Features:
- Connection: Push on male coupling.
- Disconnection: Pull back female sleeve.
- Shut off: Flat Face Valve.
- Connect under pressure: NO
- Disconnect under pressure: NO
- Interchangeability: ISO 15171-1
- Seals: NBR (backup ring PTFE)
- Temp: -25°C to +125°C
- Testing: According to ISO 7241-2
- No spillage during connection or disconnection
- Part Number Containing "14NPT" = 1/4" NPT Female Thread
- Part Number Containing "1/14NPT" = 1/4" NPT Male Thread
- Part Number Containing "1/14SAE" = 7/16" UNF Male Thread
- Part Number Containing "1/38SAE" = 9/16" UNF Male Thread


- High grade carbon steel with heat treated wear parts.
