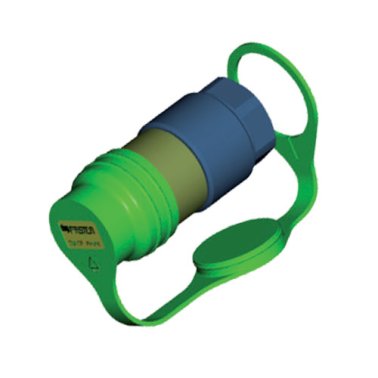

FASTER® Series FHV: Flat Face Screw to Connect Dust Protection

Item #: TM-TF-FHV06

Your Price: $16.75 / each ea
Listed Price: $16.75 / each ea
- Dust Protection PVC
- Product suits either Nipple or Coupler
- Also available on request: Aluminium Dust Protection.


Series FHV Features:

- Connection: Screw together.
- Disconnection: Pull back female safety sleeve and unscrew.
- Shut off: Flat Valve.
- Connect under pressure: YES with male part under residual pressure (35MPa - 5075PSI) without tools.
- Disconnect under pressure: YES
- Interchangeability: FASTER® Internal Standards
- Seals: Polyurethane & NBR (backup ring PTFE)
- Temp: -25°C to +100°C
- Testing: 100,000 cycles at max. rated working pressure disconnected 1,000,000 cycles at max. rated working pressure connected.
- Thread: BSP Female
- No spillage during connection or disconnection.
- Female part equipped with axial rotation adapters.
- Mating threads heat treated and made to Rd profile.
