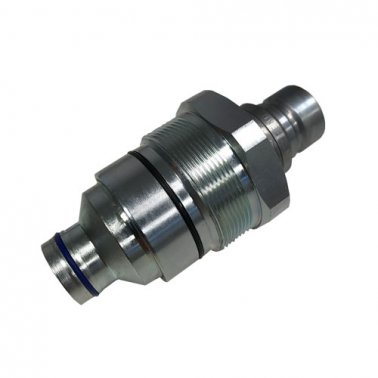

4FH Male Coupling Replacement
Item #: KIT4FH08M
Your Price:
$221.32
/
each
ea
Listed Price:
$221.32
/
each
ea
Standard replacement male coupling for Faster® 4BD4FH Skid Steer Manifold.
The 4BD€™s series parts are used on Bobcat Skid Steers and many other brands like CAT, CNH, Gehl etc€¦
Please contact customer service for pricing on the complete manifold.
Replacement Instructions:
1. Using a 50mm Hex Spanner, unscrew the coupling to be replaced. (Be careful of the reaction caused by the internal spring)
2. Remove the coupling to be replaced.
3. Insert the new coupling after having cleaned and lubricated seals and seat. (Be careful of the correct position of the spring inside the adaptor and not to damage seals.)
4. Screw the coupling with a torque 80 +10/-0 Nm
The 4BD€™s series parts are used on Bobcat Skid Steers and many other brands like CAT, CNH, Gehl etc€¦
Please contact customer service for pricing on the complete manifold.
Replacement Instructions:
1. Using a 50mm Hex Spanner, unscrew the coupling to be replaced. (Be careful of the reaction caused by the internal spring)
2. Remove the coupling to be replaced.
3. Insert the new coupling after having cleaned and lubricated seals and seat. (Be careful of the correct position of the spring inside the adaptor and not to damage seals.)
4. Screw the coupling with a torque 80 +10/-0 Nm
