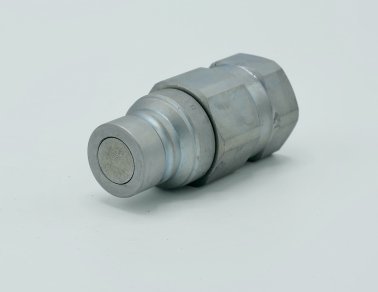

Faster® Series FFH: Flat Face Hydraulic Nipple

Item #: FFH0414GASM

Your Price: $32.89 / each ea
Listed Price: $32.89 / each ea
Series FFH Features:
- Connection: Push on male coupling.
- Disconnection: Pull back female sleeve.
- Shut off: Flat Face Valve.
- Connect under pressure: NO
- Disconnect under pressure: NO
- Interchangeability: ISO 16028
- Seals: NBR (backup ring PTFE)
- Temp: -25°C to +100°C
- Testing: 100,000 cycles at 133% of rated pressure disconnected, 1,000,000 cycles at 133% of rated pressure connected.
- Testing: According to ISO 7241-2
- Thread: BSP Female
- No spillage during connection or disconnection

"The new flat-face series FFH has notably higher performances than FFI couplings. They also exceed the performances requested by ISO 16028 regulations. Working pressure has been raised to 35MPa and the flow rates have been highly improved. FFH couplings have undergone severe impulse
tests in order to check their resistance to pressure peaks within the systems. A further plus is the Zinc-Nickel surface treatment which improves their resistance to corrosion."

- High grade carbon steel with heat treated wear parts.

- Also available on request: Stainless Steel Grade 316 and NPTF Threads
