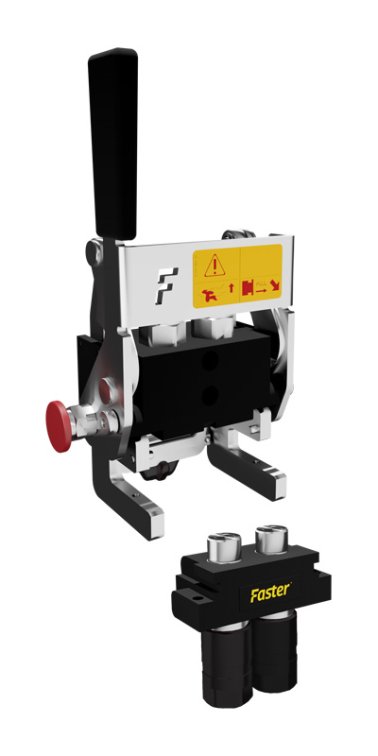

MultiSlide
Item #: MultiSlide
The MultiSlide represents a major advancement in hydraulic quick coupling technology, designed for machinery where speed, safety and cleanliness are critical. Its unique sliding lever connection system allows the operator to connect or disconnect multiple hydraulic lines simultaneously with one smooth motion, even under residual pressure.
This new-generation coupling system eliminates the effort and alignment issues found in traditional multi-couplers, reducing downtime and ensuring leak-free, contamination-free performance. The MultiSlide is ideal for modern agricultural equipment, construction machinery and industrial systems where frequent attachment changes and fast operation are essential.
Materials
Housing: Aluminium and Steel
Seals: NBR (Nitrile) and PUR (Polyurethane)
Specifications
Available Configurations:
- 2 Lines (Size 08)
- 3 Lines (2 x Size 08 + 1 x Size 06)
Valve Type: Flat Face
Connection System: Sliding lever mechanism
Disconnection System: Lever-operated
Connection Under Pressure: Allowed (residual pressure permitted)
Working Pressure: 35 MPa
Burst Pressure: 140 MPa
Flow Rate: 40 L/min (⅜″) | 70 L/min (½″)
Spillage per Couple: 0.008 mL (⅜″) | 0.01 mL (½″)
Temperature Range: −25 °C to +100 °C
Surface Treatment: MATE 500 (Cr III) with durable protective paint finish
Thread and Options
Available with BSPP female threads (ISO 1179-1) as standard. Other thread types such as Metric, JIC, and ORB can be supplied on request, ensuring compatibility across a wide range of machinery and hydraulic systems.
Other Details and Features
Innovative sliding lever design for fast, effortless multi-line connection and disconnection
Enables coupling under residual pressure without the need for special tools
Flat-face valve design prevents fluid loss and contamination ingress
Compact, user-friendly design reduces operator strain and equipment wear
Supplied with dust covers, safety lock plates and optional electrical connectors
Accessories available: lever kits, seal kits, guiding pins, docking kits and spare parts
Fully compatible with Faster MultiFaster accessories and service kits
Designed for next-generation machinery demanding faster and cleaner hydraulic connections
