P508 Series - 4 Lines, Size 08
Item #: P508

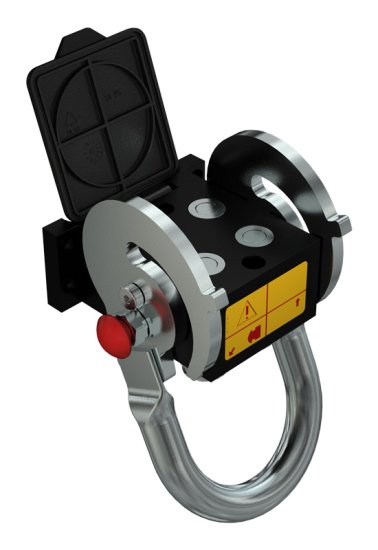

The MultiFaster P508 Multi-Coupling System is designed for hydraulic applications requiring fast and reliable connection of multiple lines. It is ideal for agricultural equipment, construction machinery, industrial systems and mobile plant applications where simultaneous connection and disconnection of multiple hydraulic circuits are required. The P508 allows quick attachment changes while preventing oil loss and contamination, ensuring maximum efficiency and operator safety.
Materials
Housing: Aluminium and Steel
Seals: NBR (Nitrile) and PUR (Polyurethane)
Specifications
Size: 08 (12.5 mm / ½″)
Number of Lines: 4
Valve Type: Flat Face
Connection System: Lever-operated
Working Pressure: 25 MPa
Burst Pressure: 70 MPa
Flow Rate: 70 L/min
Spillage per Couple: 0.01 mL
Temperature Range: −25 °C to +100 °C
Surface Treatment: MATE 500 (Cr III) with paint finish
Thread and Configuration Options
Available in a range of thread types including BSPP (ISO 1179-1), ORB (SAE ISO 11926-1), NPTF (ANSI B1.20.4), Metric (ISO 8434-1-S), and ORFS (SAE ISO 8434-3).
Standard thread sizes include ½″ BSPP, ¾″ – 16 UNF, and 1 – 1/16″ – 12 UN ORB female threads.
Selected models also feature electrical connectors (3-pin and 7-pin options) for integrated hydraulic and electrical connections
Other Details and Features
Lever connection and disconnection enable simultaneous coupling of multiple hydraulic lines
Minimal spillage and flat-face valve design for clean and safe operation
Optional stainless-steel coupling with FKM seals for higher temperature or chemical resistance
Accessories and spare parts (lever kits, guiding pins, docking kits and seal kits) available for field maintenance
