Camlock Type BC - 68° Bend

MCC Type BC Camlocks are female camlock couplers featuring a 68-degree angled multi-barbed hose tail, designed specifically for horizontal hose connections.

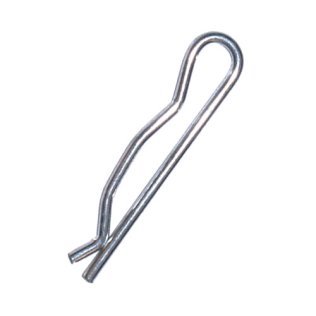

This fitting also features a built-in inspection slot to expose both the inner and outer composite hose wires, meeting specific state requirements. A safety pin hole is provided to prevent accidental disconnection due to vibration.

Body – ASTM B26/B26M Grade A356 Aluminium / T6 Heat Treated

Pins – Stainless Steel ASTM A 276 S30400

Arms – Stainless Steel ASTM A 351 CF8 (304 Equivalent) (1” – 3”) | Copper Alloy ASTM B148 Grade C95400 (4”)

Rings – Stainless Steel ASTM A 313 S30400

Manufactured to interchange with MIL-C-27487 (superseded) / CID A-A-59326 (excluding ½” size – not covered by this standard)

Temperature Range - -40°C to +120°C NBR (Buna-N) gasket installed. For other gaskets please contact us.

General Working Pressure - 2" = 150psi, 3" = 125psi, 4" = 100psi

Casting Type – Gravity Cast

Wire inspection slot included (required for some states)

Stocked in sizes: - 50mm, 80mm, 100mm (2”, 3”, 4”)
