Aluminium Type C Spiral Tail

Item #: C100ACT

Your Price: $11.33 / each ea
Listed Price: $11.33 / each ea
Aluminium Type C Camlock to Spiral Hose Tail

Application
Aluminium Type C camlock with an integrated spiral hose tail is ideal for fuel, oil, and general liquid transfer in transport, agriculture, and industrial service environments.

Materials
Body - Aluminium ASTM B26/B26M Grade A356
Pins – Stainless Steel ASTM A 276 S30400
Arms – Stainless Steel ASTM A 351 CF8 (304 Equivalent) (1” – 3”) | Copper Alloy ASTM B148 Grade C95400 (4”)
Rings – Stainless Steel ASTM A 313 S30400

Specifications
Manufactured to interchange with MIL-C-27487 (superseded) / CID A-A-59326 (excluding ½” size – not covered by this standard)
Temperature Range - -40°C to +120°C NBR (Buna-N) gasket installed. For other gaskets please contact us.
General Working Pressure - 1"-2 1/2" = 150psi, 3" = 125psi, 4" = 100psi
Casting Type – Gravity Cast

Other Details & Features

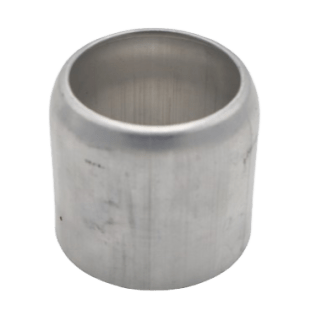

Crimp collar designed to engage with slotted ferrules is standard on sizes 1”-4”
Supplied with SS pull rings & safety pins
Stocked in sizes – 25mm – 100mm (1" - 4")
