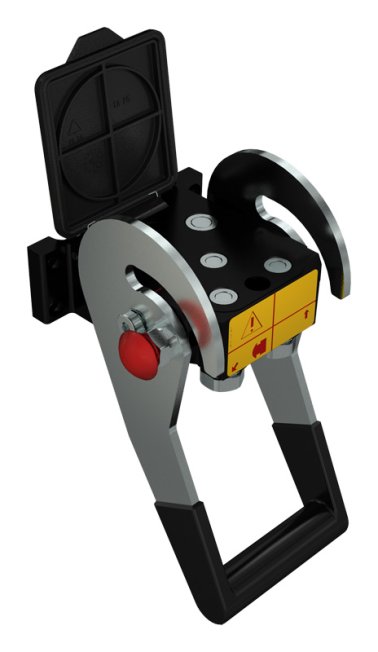

P5065 - 5 Lines, 2 Lines 06, 3 Lines 04
Item #: P5065
The MultiFaster P5065 Multi-Coupling System is engineered for equipment requiring fast, safe and simultaneous connection of multiple hydraulic lines. It is ideally suited for agricultural, construction, mining and industrial machinery where reliable and contamination-free hydraulic connections are essential. The P5065 is designed for compact systems with mixed line sizes and enables quick changeover of attachments with minimal fluid loss.
Materials
Housing: Aluminium and Steel
Seals: NBR (Nitrile) and PUR (Polyurethane)
Specifications
Size: 04 (6.3 mm / ¼″) and 06 (10 mm / ⅜″)
Number of Lines: 5 (3 lines ¼″ + 2 lines ⅜″)
Valve Type: Flat Face
Connection System: Lever-operated
Working Pressure: 25 MPa
Burst Pressure: 100 MPa
Flow Rate: Up to 40 L/min (⅜″)
Spillage per Couple: 0.008 mL
Temperature Range: −25 °C to +100 °C
Surface Treatment: MATE 500 (Cr III) with paint finish
Thread and Configuration Options
Available with BSPP (ISO 1179-1) and ORB (SAE ISO 11926-1) thread types.
Standard thread sizes include ¼″ BSPP female, ½″ BSPP female, 9/16″ – 18 UNF ORB female and ¾″ – 16 UNF ORB female.
Optional electrical connectors available for integrated hydraulic and electrical interfaces.
Other Details and Features
Lever-operated connection and disconnection for simultaneous multi-line coupling
Flat-face valve design minimises spillage and prevents contamination
Residual pressure connection capability ensures reliable operation in the field
