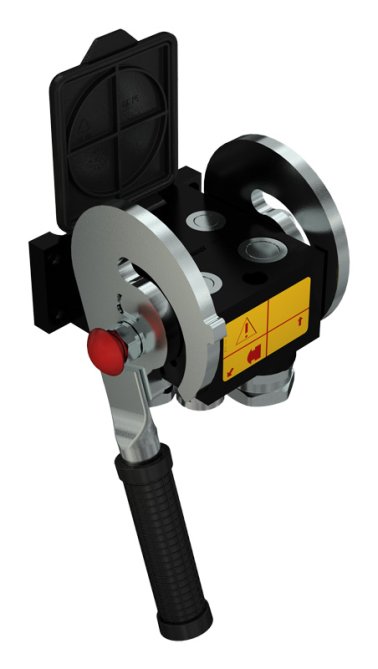

P510 - 4 Lines, 2 Size 08, 2 Size 12
Item #: P510
The MultiFaster P510 Multi-Coupling System is designed for hydraulic applications requiring fast, safe and simultaneous connection of multiple lines. It is ideal for agricultural machinery, construction equipment and industrial systems where quick changeover of attachments and reliable fluid sealing are critical. The P510 ensures minimal fluid loss and contamination while reducing equipment downtime through its lever-operated connection system.
Materials
Housing: Aluminium and Steel
Seals: NBR (Nitrile) and PUR (Polyurethane)
Specifications
Size Options: 08 (12.5 mm / ½″) and 12 (20 mm / ¾″)
Number of Lines: 4 (with various line size combinations available)
Valve Type: Flat Face
Connection System: Lever-operated
Working Pressure: 25 MPa
Burst Pressure: 100 MPa
Flow Rate: Up to 70 L/min (½″) | Up to 105 L/min (¾″)
Spillage per Couple: 0.01 mL (½″) | 0.02 mL (¾″)
Temperature Range: −25 °C to +100 °C
Surface Treatment: Painted finish with MATE 500 (Cr III) corrosion protection
Thread and Configuration Options
Available with BSPP (ISO 1179-1) and ORB (SAE ISO 11926-1) thread types.
Standard thread options include:
- ½″ BSPP Female
- ¾″ BSPP Female
- ¾″ – 16 UNF ORB Female
- 1 – 1/16″ – 12 UN ORB Female
Other Details and Features
Lever-operated coupling and uncoupling for efficient multi-line connection
Flat-face valve design ensures minimal spillage and contamination-free operation
