P608 Series - 6 Lines, Size 08
Item #: 2P608-6-12G-F-C
Your Price:
$2,292.40
/
each
ea
Listed Price:
$2,292.40
/
each
ea

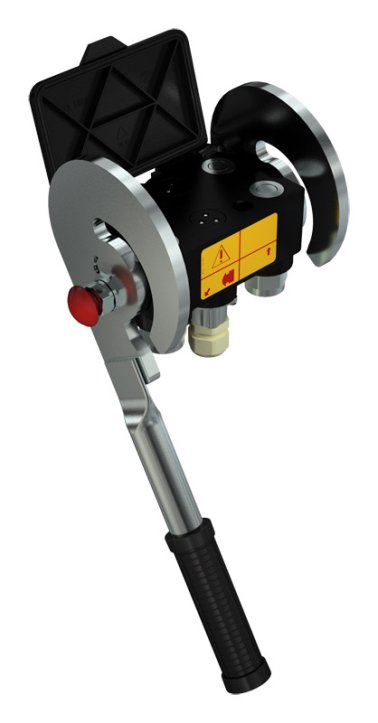

MultiFaster P608 - 6 lines, size 08
The MultiFaster P608 Multi-Coupling System is designed for applications requiring quick and safe connection of multiple hydraulic lines. It is ideal for agricultural machinery, construction equipment, industrial systems, and mobile plant applications where simultaneous connection and disconnection of hydraulic circuits are required. The P608 enables fast changeover of attachments, minimising downtime and preventing fluid contamination.
The MultiFaster P608 Multi-Coupling System is designed for applications requiring quick and safe connection of multiple hydraulic lines. It is ideal for agricultural machinery, construction equipment, industrial systems, and mobile plant applications where simultaneous connection and disconnection of hydraulic circuits are required. The P608 enables fast changeover of attachments, minimising downtime and preventing fluid contamination.
Materials
Housing: Aluminium and Steel
Seals: NBR (Nitrile) and PUR (Polyurethane)
Specifications
Size: 08 (12.5 mm / ½″)
Number of Lines: 6
Valve Type: Flat Face
Connection System: Lever-operated
Working Pressure: 25 MPa
Burst Pressure: 70 MPa
Flow Rate: 70 L/min
Spillage per Couple: 0.01 mL
Temperature Range: −25 °C to +100 °C
Surface Treatment: MATE 500 (Cr III) with protective paint finish
Thread and Configuration Options
Available with BSPP (ISO 1179-1), ORFS (SAE ISO 8434-3), ORB (SAE ISO 11926-1), and JIC (SAE ISO 8434-2) thread types.
Standard thread options include ½″ BSPP, ¾″ – 16 UNF, and 1 – 1/16″ – 12 UN ORB.
Other Details and Features
Lever connection and disconnection for simultaneous coupling of multiple lines
Designed for minimal fluid spillage and system cleanliness
Residual pressure connection capability ensures reliability in field conditions
